Description

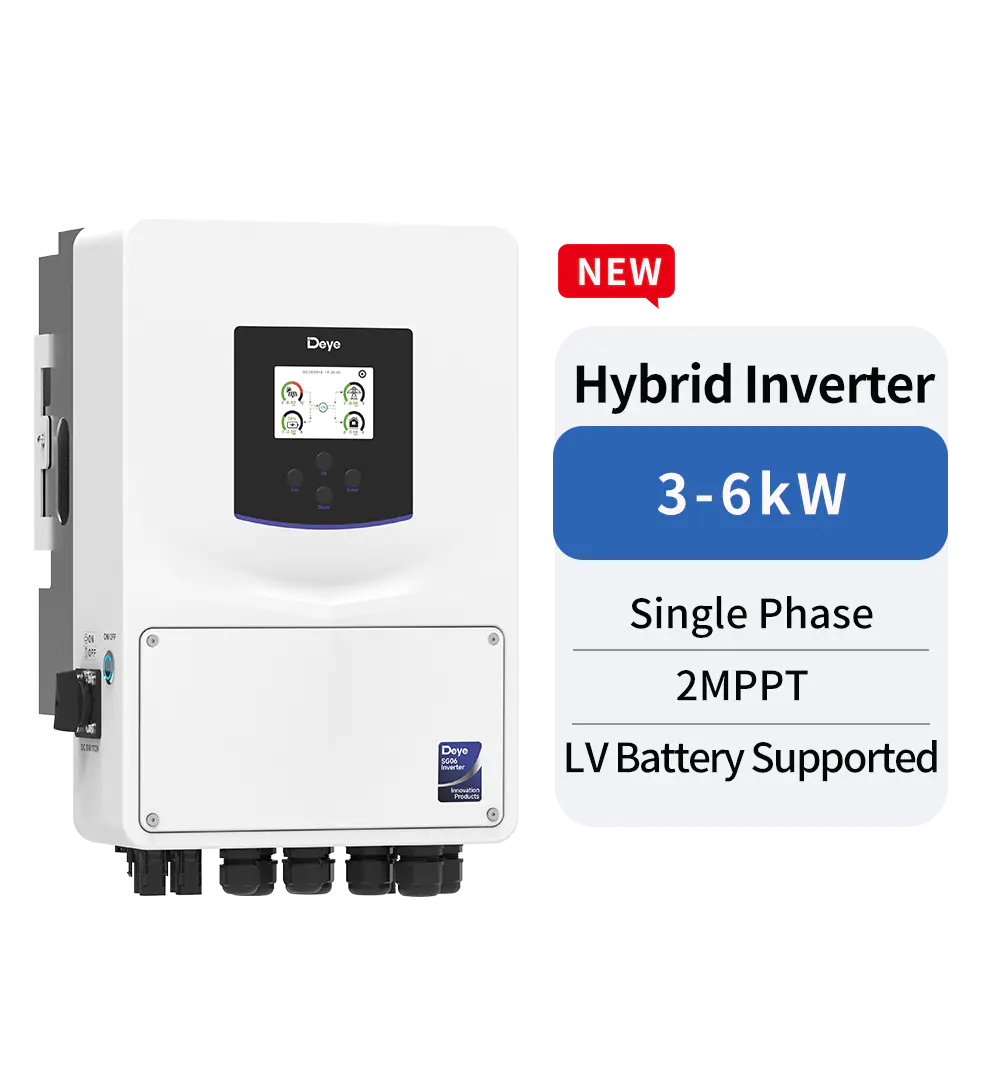

| Model | SUN-3K-SG06LP1-24-EU-CM1 | SUN-3K-SG06LP1-EU-CM1 | SUN-3.6K-SG06LP1-EU-CM2 | SUN-4K-SG06LP1-EU-CM2 | SUN-4.6K-SG06LP1-EU-CM2 | SUN-5K-SG06LP1-EU-CM2 | SUN-6K-SG06LP1-EU-CM2 |
| Battery Input Data | |||||||
| Battery Type | Lead-acid or Lithium-ion | ||||||
| Battery Voltage Range(V) | 20-30 | 40-60 | |||||
| Max.Charging/Discharging Current(A) | 140 | 70 | 90 | 95 | 120 | 120 | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||
| Number of Battery Input | 1 | ||||||
| PV String Input Data | |||||||
|
Max. PV Access Power (W)
|
6000 | 6000 | 7200 | 8000 | 9200 | 10000 | 12000 |
| Max. PV Input Power（W） | 4800 | 4800 | 5760 | 6400 | 7360 | 8000 | 9600 |
| Max. PV Input Voltage（V） | 500 | ||||||
| Start-up Voltage（V） | 125 | ||||||
| MPPT Voltage Range（V） | 150-425 | ||||||
| Rated PV Input Voltage(V) | 370 | ||||||
| Max Operating PV Input Current（A） | 18 | 18+18 | |||||
| Max Input Short-Circuit Current（A） | 27 | 27+27 | |||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 1/1 | 2/1+1 | |||||
| AC Input/Output Data | |||||||
| Rated AC Input/Output Active Power（W） | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | |
| Max. AC Input/Output Apparent Power （VA） | 3300 | 3960 | 4400 | 4600 | 5500 | 6600 | |
| Rated AC Input/Output Current（A） | 13.7/13.1 | 16.4/15.7 | 18.2/17.4 | 21/20 | 22.8/21.8 | 27.3/26.1 | |
| Max. AC Input/Output Current（A） | 15/14.4 | 18/17.3 | 20/19.2 | 21/20 | 25.0/24.0 | 30/28.7 | |
| Max. Continuous AC Passthrough (grid to load)（A） | 50 | ||||||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | ||||||
| Rated Input/Output Voltage | 220V/230V 0.85Un-1.1Un L+N+PE | ||||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55，60/55-65 | ||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | ||||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||||
| DC Injection Current | <0.5%ln | ||||||
| Efficiency | |||||||
| Max. Efficiency | 97.6% | ||||||
| Euro Efficiency | 96.5% | ||||||
| MPPT Efficiency | ＞99% | ||||||
| Equipment Protection | |||||||
| Integrated |
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection,
AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding
Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
|
||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||||
| Interface | |||||||
| LCD/LED Display | LCD | ||||||
|
Communication Interface
|
WIFI, RS485, CAN | ||||||
| General Data | |||||||
| Operating Temperature Range | -40 to+60℃,＞45℃ Derating | ||||||
| Permissible Ambient Humidity | 0~100% | ||||||
| Permissible Altitude | 3000m | ||||||
| Noise(dB) | ＜45 | ||||||
| Ingress Protection(IP) Rating | IP 65 | ||||||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | ||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||
| Cabinet size（W*H*D）[mm] | 310*460*218（Excluding connectors and brackets） | ||||||
| Weight[kg] | 15.6 | ||||||
| Warranty | 5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
||||||
| Type Of Cooling | natural cooling | ||||||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | ||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
